JK Fast Speed Electric Winch
JK Fast Speed Electric Winch1. Compact structure and reasonable design. 2. Easy to install, operate and maintenance. 3. Low noise and good working condition 4. Wireless remote control is available 5.
Detailed Intruduction

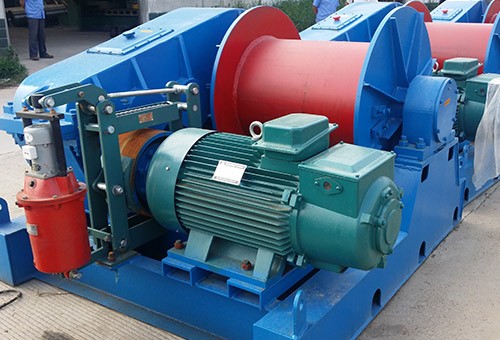

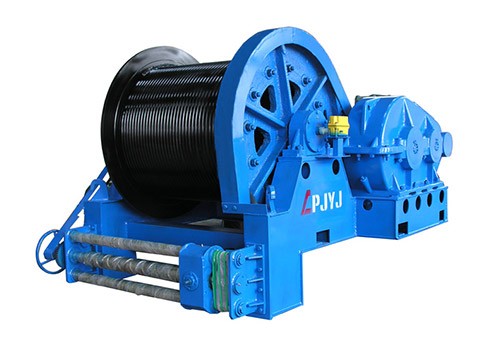

JK Fast Speed Electric Winch
Product description
This series winch mainly used for large and oversize concrete construction of steel installation and disassembly of mechanical equipment.This structural characteristic is wire rope orderly arrangement lifting is safe and reliable.It is suitable for the installation of various bridges, ports, docks and other road and bridge projects and large-scale factories and mines engineering equipment.
| JK electric high speed winch technical parameter | ||||||||
| Type | Rated Load (kN) | Rated Speed (m/min) | Rope Capacity (m) | Rope Diameter (mm) | Motor Type | Motor Power (kW) | Orm dimension (mm) | Weight (kg) |
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
