JM Slow Speed Electric Winch

JM Slow Speed Electric Winch1. Compact structure and reasonable design. 2. Easy to install, operate and maintenance. 3. Low noise and good working condition 4. Wireless remote control is available 5.

Detailed Intruduction

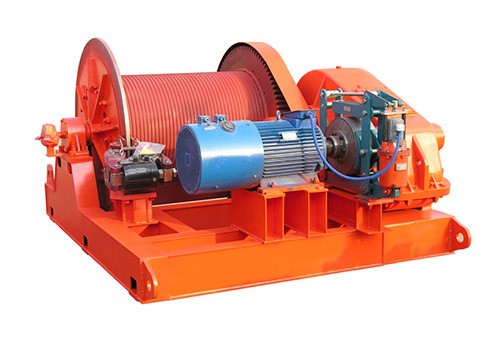

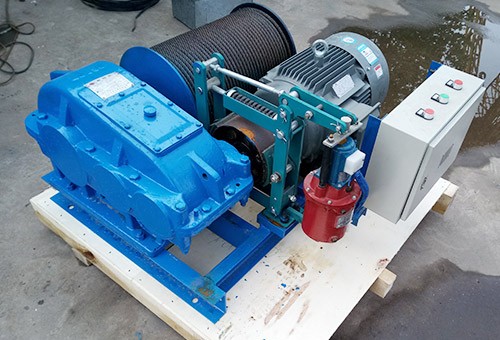

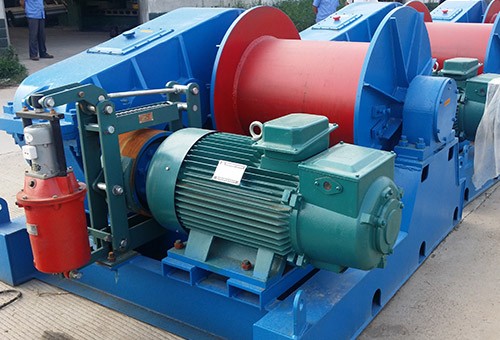

JM Slow Speed Electric Winch

  • 1. Compact structure and reasonable design.

  •
  • 2. Easy to install, operate and maintenance.

  •
  • 3. Low noise and good working condition

  •
  • 4. Wireless remote control is available

  •
  • 5. Specially designed electronic control system according to special needs, such as adding PLC, frequency converter, remote control, rope arranging device, limiter, encoder, etc

  •
  • 6. 1.25 times load test before leaving the factory, high safety factor


Product description

This series winch mainly used for large and oversize concrete construction of steel installation and disassembly of mechanical equipment.This structural characteristic is wire rope orderly arrangement lifting is safe and reliable.It is suitable for the installation of various bridges, ports, docks and other road and bridge projects and large-scale factories and mines engineering equipment.


JM electric slow speed winch technical parameter
TypeRated Load
(kN)
Rated Speed
(m/min)
Rope Capacity
(m)
Rope Diameter
(mm)
Motor TypeMotor Power
(kW)
Orm dimension
(mm)
Weight
(kg)
JM110151009.3Y112M-63620*701*417270
JM1.6161615012.5Y132M2-65.5945*996*570500
JM2201615013Y160M-67.5945*996*570550
JM3.2329.215015.5YZR160M2-67.51430*1160*9101100
JM5501027021.5YZR160L-6111235*1230*8051560
JM6609.527024YZR180L-6151235*1509*8051800
JM880825026YZR180L-6152090*1475*9562900
JM10100817030YZR200L-6222090*1475*9563000
JM12.5125830034YZR225M-6302880*2200*15505000
JM13.5135529034YZP225S-8222990*2363*16506500
JM161601050037YZR250M2-8373750*2400*18508800
JM202001060043YZR280S-8453950*2560*19509900
JM25250970048YZR280M-8554350*2800*203013500
JM32320970056YZR315S-8754500*2850*210014800
JM50500980065YZR315M-8904930*3050*225019500
JM6565010.5360064LA8315-8AB1605900*4680*320046000
