Electric Mooring Winch

Electric Mooring WinchStarting efficiency and transmission efficiency, low energy consumption, reliable, long service life; low noise during operation; good economic performance; Class Available for C

Detailed Intruduction

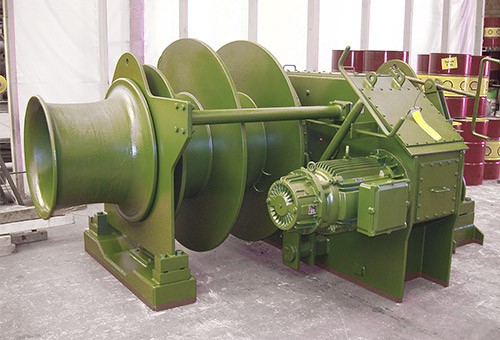

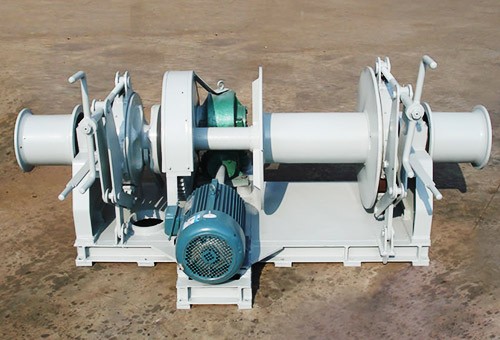

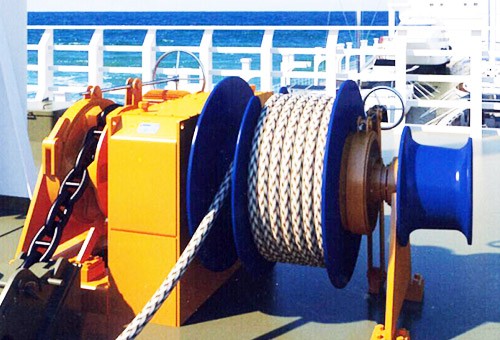

Electric Mooring Winch

  • Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life; low noise during operation; good economic performance; Class Available for Class: CCS, ABS, LR, BV, GL, NK, DNV, KR, RINA, etc Wireless remote control is available Bolt hole mounting for easy installation and removal High quality marine electric motor,brake and gear box.


Product description

Electric mooring winch is electrically driven by the motor, vessels use it for drawing out and pulling in the lines of cable, rope or chain to attach to docks and stop there safely without drifting and moving; except that, the winch also has other functions.


Electric Mooring Winch
TypeDrum Load
(kN)
Nominal Speed
(m/min)
Holding Load
(kN)
Dia.of Rope
(mm)
Rope Capacity
(m)
NDX3030159016150
NDX40401512018150
NDX50501515020180
NDX75751522026180
NDX80801524026200
NDX1001001530028200
NDX1251251531030200
NDX1501501545032250
NDX1601601547032250
NDX2002009.659040250
NDX2502509.373044250
NDX3153157.894052250
NDX3503507.8105054250
NDX4004007.8108056250
