Electric Vertical Capstan

Electric Vertical CapstanExcellent design,versatility of the capstan, reliable performance , smooth running, variable speeds which meets your different needs, compact structure and nice appearance; ma

Detailed Intruduction

Electric Vertical Capstan

  • Excellent design,versatility of the capstan, reliable performance , smooth running, variable speeds which meets your different needs, compact structure and nice appearance; maintenance is easy and fast; Wireless remote control is available;


Product description

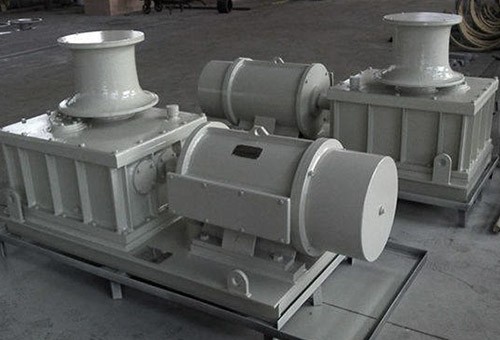

Vertical capstan winch is a machine with a drum rotating round a vertical spindle driven by a motor, it’s usually mounted on the deck in a vertical position

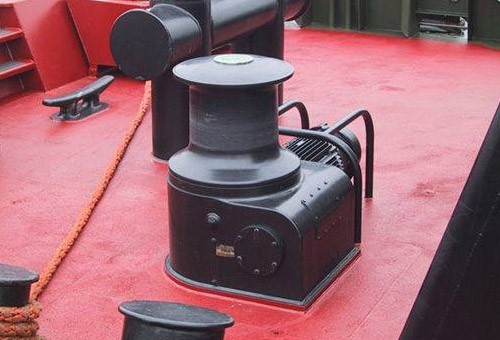

Vertical design suits smaller powerboats or sailboats and can be utilised for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling from any direction.


Electric Capstan Technical Parameters
TypeWarping load (KN)Warping speed
(m/min)
Wire Dia(mm)Motor power (kw)
ElectricHydraulic
NDL55≥18φ113/1.25.5
NDL1010≥18φ114.3/1.77.5
NDL2020≥18φ157.5/7.5/515
NDL3030≥18φ17.516/16/1118.5
NDL4040≥18φ20.516/16/1118.5
NDL5050≥18φ20.522/22/1630
NDL7070≥15φ2630/30/2245
NDL100100≥15φ2845/45/3055
D(Y)J120120≥15φ32.560/60/4575
D(Y)J150150≥15φ36.560/60/4590
D(Y)J200200≥15φ4075/75/36110
D(Y)J250250≥12φ4675/75/36110


Our Heavy Duty Lifting Systems has strengthened support capabilities to our customers in all fields of industry, by becoming their partners in providing maintenance and technical services in gantry cranes,bridge cranes,mobile cranes,marine cranes,hoist lift,electric chain hoist,windlass,anchor winch,mooring winch,electric and hydraulic winches,motor winch,spillway gate hoist.etc to complete our circle of customer support to become the No. 1 company for Customer Satisfaction.

We can provide the full range of services throughout the life of all machinery we manufacture, providing solutions for every stage, encompassing maintenance ,repair, modifications, parts supply, and facilities modernization and optimization.
