Hydropower Station Gate Hoist

Arc Sluice Gate Hoist1. Single lifting point High work efficiency 2. Improve stability 3. Nanjing Special Motor 4. Low operating and maintenance costs Double lifting point Uniform force balance, large

Detailed Intruduction

Arc Sluice Gate Hoist

  • 1. Single lifting point High work efficiency

  •
  • 2. Improve stability

  •
  • 3. Nanjing Special Motor

  •
  • 4. Low operating and maintenance costs Double lifting point Uniform force balance, large starting force

  •
  • 5. High work synchronization performance

  •
  • 6. Easy to operate


Product description

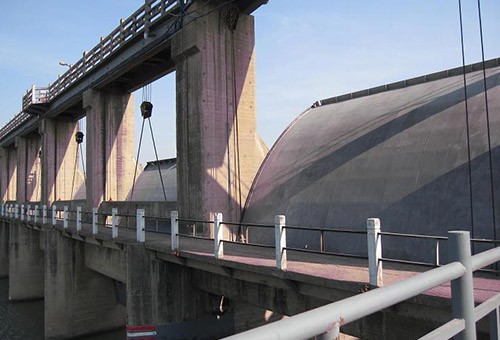

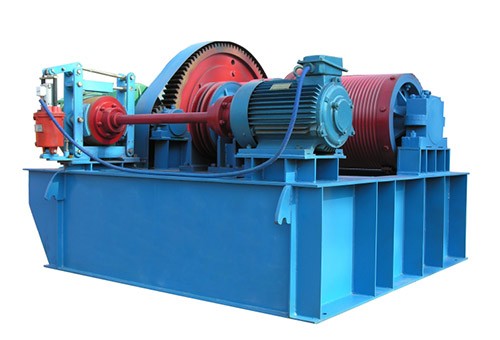

The Arc Sluice Gate Hoist is composed of a frame, a hoisting mechanism and an electric control system. The arc door winch opening and closing mechanism is mainly composed of a pulley block, a reel set, a driving device (including a form gear pair, a speed reducer, a brake, a motor, etc.) and a safety device, and the hoist passes through a spreader located on the pulley assembly pulley. The gates are connected to open and close the gates. Arc door winch hoist working principle: driven by the motor to drive the brake wheel and reducer drive open
The gear pair and the reel rotate, and the wire rope on the reel is lifted and lowered by the pulley and the balance pulley.

Advantage:
Because the winch type hoist has many speed reduction programs and large speed ratio.
It has been enlarged by the pulley block and is suitable for gates with larger orifice sizes and heads.
The wire rope can be wound in a single layer or multi-layered to facilitate opening of a gate or deep hole gate with a large stroke.
The direction of the force of the wire rope can be appropriately oscillated, or the direction of the force can be changed by the additional embedded diverting pulley. Therefore, the cooperation of the gate and the hoist has greater flexibility.
When electric is used, the speed of opening and closing is fast, and it is suitable for accident gates and gates that are frequently opened and closed.




ModelLifting force(KN)Height(m)Speed(m/min)Lifting points distance(m)MotorBrakeWeight(kg)
TypePower(kw)
Single lifting pointQHQ6060101.24
Y132M1-64.0TJ2-2002063
QHQ8080101.24
Y132M1-64.0TJ2-2002555
QHQ100100101.60
Y132M1-64.0TJ2-2002910
QHQ125125111.60
Y160M-67.5TJ2-2003620
QHQ150150101.75
Y160L-67.5TJ2-2004250
QHQ250250151.59
Y160M-611TJ2-2006640
Double lifting points

QHQ2x602x60101.242.5-8Y160M-67.5TJ2-2004125
QHQ2x802x80101.242.5-8Y132M-62x4.0TJ2-2005110
QHQ2x1002x100101.585.1-10Y160M-67.5TJ2-2005810
QHQ2x1252x125111.605.1-10Y160L-611TJ2-2007230
QHQ2x1502x150101.585.1-10Y180M-611TJ2-2008500
QHQ2x2502x250151.585.4-12Y180M-615TJ2-20013280
