General Purpose Winch

JKL Manual Rapid Humping Winch1. Good speed control performance, can make the empty hook quickly decline 2. Compact structure and reasonable design. 3. Wireless remote control is available 4. Easy to

Detailed Intruduction

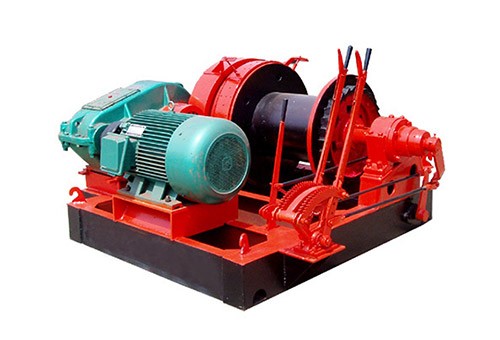

JKL Manual Rapid Humping Winch

  • 1. Good speed control performance, can make the empty hook quickly decline

  •
  • 2. Compact structure and reasonable design.

  •
  • 3. Wireless remote control is available

  •
  • 4. Easy to install, operate and maintenance.

  •
  • 5. Specially designed electronic control system according to special needs, such as adding PLC, frequency converter, remote control, rope arranging device, limiter, encoder, etc

  •

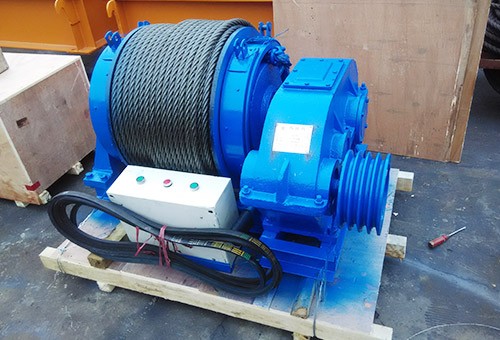

JKL high speed electric free rolling winchThis series winch mainly used for lifting weight drops vertical in construction area, factory and mine site and port.
It is especially suitable for punching pilling works in the freefall at bridge, port, base construction engineering. The structural character is main shaft rotating (known as rotating shaft).



JKL hand control high speed free rolling winch technical parameter
TypeRated Load
(kN)
Average Speed
(m/min)
Rope Capacity
(m)
Rope Diameter
(mm)
Motor TypeMotor Power
(kW)
Orm dimension
(mm)
Weight
(kg)
JKL2203015013Y180L-6151370*1650*12101200
JKL3303020015Y200L-6221690*1740*12001800
JKL5503025021Y225S-6372300*2100*16503000
JKL6603625024Y280S-6452350*2100*16503200
JKL8802925026Y280M-6552440*2500*18005500
JKL101002925028Y315S-6752590*2540*18005800
