JMM Large Capacity Friction Winch1. Constant speed 2. Stable lifting 3. Large drum capacity 4. Wireless remote control is available 5. Specially designed electronic control system according to special

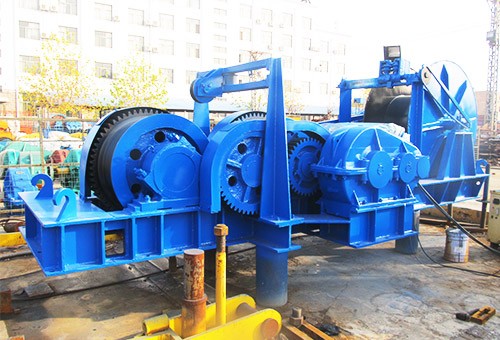

JMM Large Capacity Friction Winch
Product description
This series winch is mainly used for the drawing and lifting of long travel distance of all kinds of large and super large concrete and steel structure and cable.
The characteristic is that the speed of lifting rope is constant and the lifting is smoothly operating.
It is applicable to various bridge, port and dock engineering and construction of large-scale bridge and large factory, power engineering equipment installation.
| JMM electric winch technical parameter | ||||||||
| Type | Rated Load (kN) | Rated Speed (m/min) | Rope Capacity (m) | Rope Diameter (mm) | Motor Type | Motor Power (kW) | Orm dimension (mm) | Weight (kg) |
| JMM10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 30 | 1980*2650*850 | 6000 |
| JMM16 | 160 | 11 | 1000 | 34.5 | YZR225M2-6 | 45 | 3350*1920*1320 | 9500 |
| JMM20 | 200 | 11 | 3600 | 39 | YZR280S-6 | 55 | 3500*1960*1320 | 10000 |
| JMM32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 75 | 4330*2350*1760 | 16000 |
| JMM55 | 550 | 5 | 2000 | 60 | YZR280M-6 | 75 | 5000*2800*1900 | 22000 |
We are a heavy duty lifting equipment manufacturer specializes in designing and manufacturing heavy lifting equipment including overhead cranes, gantry cranes, jib cranes, hoists, construction winches and marine winches.Nybon has more than 10 years of experience in crane design and manufacture and has grown into a professional player in crane and winch industry as we always focus on the needs of esteemed customers.
