Marine Anchor winch
Marine Anchor winchMarine electric anchor winch takes up less space on deck and easy to operate, environment friendly，easy to maintain,Low noise and good working condition Class Available for Class: C
Detailed Intruduction
Marine Anchor winch
Product description

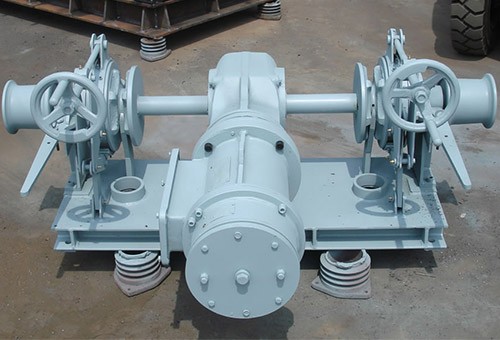

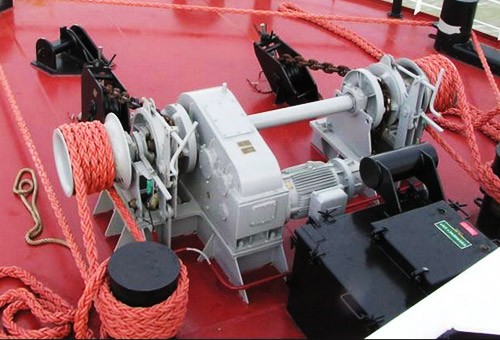

Marine anchor winch is the device placed on deck applied for anchoring operations when a ship arrives and needs to stop at a pier or port or set sail after the stop.It makes use of an integral gearbox and motor assembly, all typically located above deck with a horizontal shaft through the unit and wheels for chain and/or rope on the other side.
| Single type and symmetrical type electric windlass techinical parameter | |||||||||
| Type | Dia.of Chain (mm) | Working Load (kN) | Overload Pulling Force (kN) | Holding Load (kN) | Nominal Speed (m/min) | Warping Load (kN) | |||
| AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | ||||
| NDM17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 8 |
| NDM19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 10 |
| NDM22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 15 |
| NDM26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 |
| NDM30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 |
| NDM34 | 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294 | 421 | 9 | 30 |
| NDM38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 |
| NDM42 | 42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 50 |
| NDM46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 |
| NDM50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 50 |
