Air Bag
Product descriptionAirbag ship launching technology overcomes restrictions of traditional ship launching methods and can enhance thebuilding and repairing capacity of shipyards .After years of develop
Detailed Intruduction
Product description---

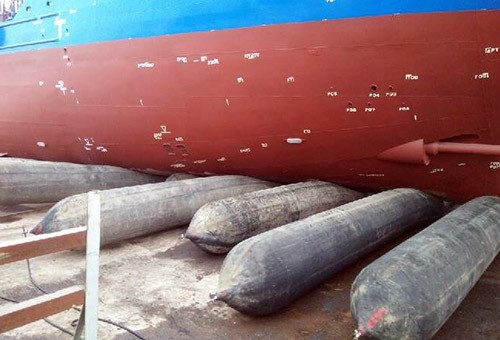

Airbag ship launching technology overcomes restrictions of traditional ship launching methods and can enhance thebuilding and repairing capacity of shipyards .After years of development this technology has become into a matureand flexible one .Its launching capability reaches 11 ,000 tonnes light weight.
| Air Bag Specifications | |||||
| Diameter | Effective Length | Layers | Working Pressure | Working Height | Loading Capacity(t/m) |
| D=1.0m | 5m-21m | 5 to 10 | 0.05-0.15MPa | 0.3m | 17 |
| 0.4m | 14 | ||||
| 0.5m | 12 | ||||
| D=1.2m | 0.3m | 21 | |||
| 0.4m | 19 | ||||
| 0.5m | 17 | ||||
| D=1.5m | 0.4m | 26 | |||
| 0.6m | 21 | ||||
| 0.8m | 17 | ||||
| D=1.8m | 0.5m | 31 | |||
| 0.7m | 26 | ||||
| 0.9m | 21 | ||||
| D=2.0m | 0.5m | 35 | |||
| 0.8m | 28 | ||||
| 1.0m | 24 | ||||
| D=2.5m | 0.5m | 40 | |||
| 0.9m | 32 | ||||
| 1.2m | 26 | ||||
