JKD Electric portable planetary drive Winch
JKD Electric portable planetary drive Winch1. Compact structure and reasonable design. 2. Wireless remote control is available 3. Easy to install, operate and maintenance. 4. Specially designed electr
Detailed Intruduction

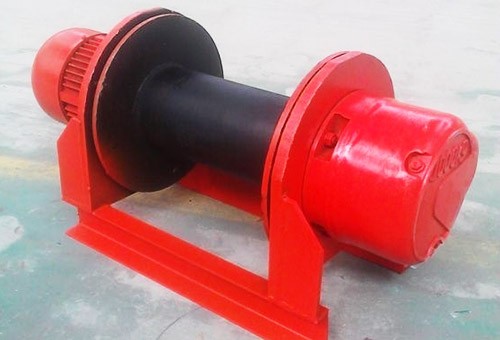

JKD Electric portable planetary drive Winch
Product description
JKD series winch is a new hoist winch with small teeth ditterence planetary drive.It is also the ideal replacement of traditional winch.This series winch is widely used in building construction,piers,bridge and metallurgical industries of lifting and installation,especially suitable for lifting of main winch in the crane.
| JKD compact high speed winch technical parameter | |||||||
| Type | Rated Load (kN) | Average Speed (m/min) | Rope Capacity (m) | Rope Diameter (mm) | Motor Power (kW) | Orm dimension (mm) | Weight (kg) |
| JKD0.75 | 7.5 | 30 | 100 | 9.3 | 3 | 900*340*400 | 165 |
| JKD1.25 | 12.5 | 46 | 120 | 11 | 7.5 | 1140*400*450 | 315 |
| JKD1.60 | 16 | 28 | 160 | 12.5 | 7.5 | 1200*440*450 | 350 |
| JKD2.0 | 20 | 36 | 190 | 13 | 13 | 1400*470*548 | 510 |
