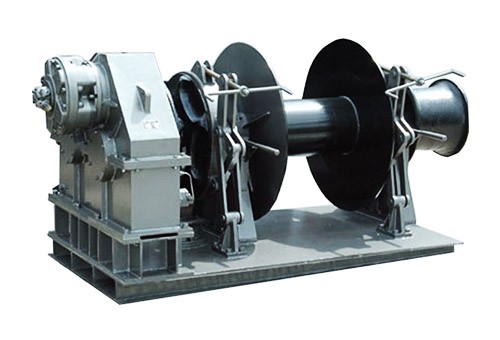

Hydraulic Mooring Anchoring Winch
Hydraulic Mooring Anchoring Winch1. Compact structure, beautiful appearance 2. Almost no noise, comfortable operation 3. The size volume is very small,compact structure,save space. 4. Low dead weight,
Detailed Intruduction
Hydraulic Mooring Anchoring Winch
Product description
The hydraulic mooring anchoring combination machine provides a power source for the hydraulic pumping station, and has the dual functions of mooring and anchoring.
Model | Chain diameter(mm) | Working load(KN) | Overload pulling force(KN) | Holding load(KN) | Nominal speed(m/s) | Drum load(KN) | Nominal speed(m/s) | Rope capacity(m) | Warping load(KN) | |||
AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | |||||||
NYZ-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 0.15 | 10 | 0.17 | φ11*100 | 8 |
NYZ-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 0.15 | 15 | 0.17 | φ13*100 | 10 |
NYZ-20 | 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 0.15 | 20 | 0.17 | φ13*100 | 10 |
NYZ-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 0.15 | 20 | 0.25 | φ15*100 | 15 |
NYZ-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 0.15 | 20 | 0.25 | φ15*100 | 20 |
NYZ-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 0.15 | 20 | 0.17 | φ22*100 | 20 |
NYZ-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 0.15 | 20 | 0.17 | φ22*120 | 20 |
NYZ-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 0.15 | 30 | 0.17 | φ22*120 | 30 |
NYZ-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 0.15 | 30 | 0.15 | φ20*120 | 30 |
NYZ-34 | 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294 | 421 | 0.15 | 40 | 0.15 | φ20*120 | 30 |
NYZ-36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 0.15 | 30 | 0.2 | φ20*120 | 30 |
NYZ-38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 0.15 | 40 | 0.25 | φ22*150 | 40 |
NYZ-40 | 40 | 68 | 76 | 102 | 114 | 402 | 576 | 0.15 | 40 | 0.15 | φ22*150 | 40 |
NYZ-42 | 42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 0.15 | 40 | 0.25 | φ22*150 | 50 |
NYZ-44 | 44 | 82.3 | 92 | 123.5 | 138 | 483 | 691 | 0.15 | 50 | 0.25 | φ26*200 | 50 |
NYZ-46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 0.15 | 50 | 0.3 | φ26*200 | 50 |
NYZ-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 0.15 | 60 | 0.17 | φ26*200 | 50 |
NYZ-50 | 20 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 0.15 | 80 | 0.25 | φ26*200 | 50 |
