Compact structure and reasonable design. Easy to install, operate and maintenance. It can be used outdoors without electricity supply Small size, light weight and easy to carry.Product descriptionThe
Compact structure and reasonable design. Easy to install, operate and maintenance. It can be used outdoors without electricity supply Small size, light weight and easy to carry.
Product description

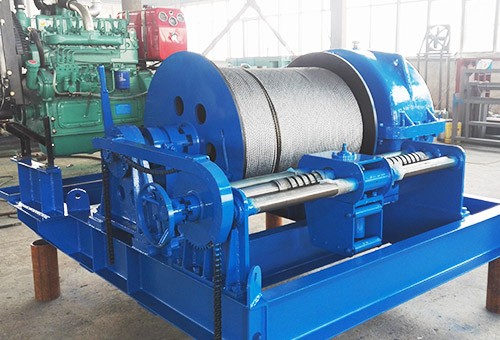

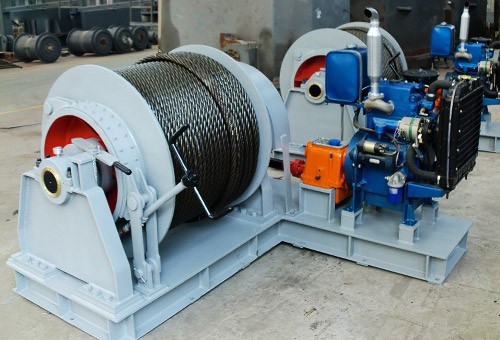

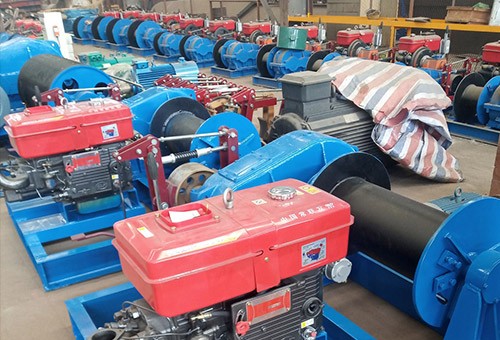

The diesel winch is mainly suitable for outdoor places without electricity supply. It can be used alone or as a mechanical component of lifting machinery, road construction machinery and mining cranes.
This model has the advantages of simple operation, large roping, convenient movement and wide use. Mainly used in construction, hydraulic engineering, forestry, mining, port lifting or hauling materials.
| JMC diesel winch technical parameter | ||||||
| Type | Rated Load (kN) | Rated Speed (m/min) | Rope Capacity (m) | Rope Diameter (mm) | Motor Type | Motor Power (kW) |
| JMC1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 |
| JMC1.6 | 16 | 16 | 150 | 12.5 | Y132M2-6 | 5.5 |
| JMC2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 |
| JMC3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M2-6 | 7.5 |
| JMC5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 |
| JMC6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 |
| JMC8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 |
| JMC10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 |
| JMC12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 |
| JMC13.5 | 135 | 8 | 290 | 34 | YZP225S-8 | 22 |
| JMC16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 |
| JMC20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 |
| JMC25 | 250 | 9 | 700 | 48 | YZR280M-8 | 55 |
| JMC32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 |
| JMC50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 |
| JMC65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 |
