Pulley Block

Pulley BlockReinforced guard plate and special sealing device: corrosion resistance, waterproof sealing device installed on both sides of the shaft. Alloy material: high quality hook and ring 20Mn or

Detailed Intruduction

Pulley Block

  • Reinforced guard plate and special sealing device: corrosion resistance, waterproof sealing device installed on both sides of the shaft. Alloy material: high quality hook and ring 20Mn or 34CrNiMo JDB inlaid oil-bearing copper alloy sliding bearing is installed in the sliding part, winch greatly improves the impact resistance of the pulley.


Product description

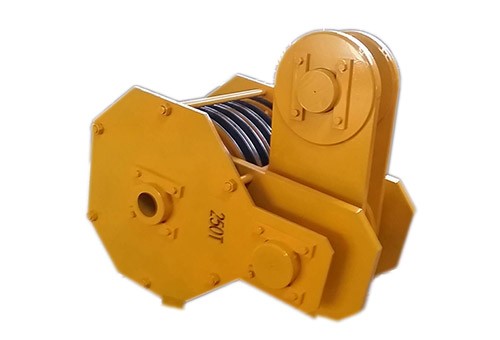

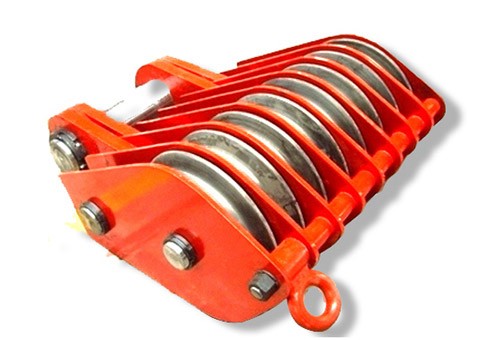

Type ZHC marine pulley is a lifting product designed and developed for offshore operation. The reinforced guard plate and special sealing device greatly improve the impact resistance and corrosion resistance of the pulley. It is much better than ordinary lifting pulley, suitable for lifting operation in port and ocean conditions.

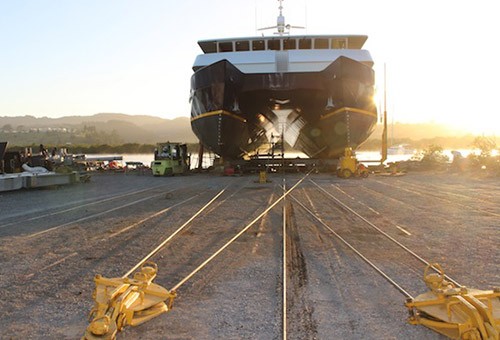

In view of the characteristics of corrosion resistance and impact resistance required by the ship wharf industry, two technologies, namely reinforced guard plate and special sealing device, are adopted to enhance the impact resistance ability of the pulley itself and greatly improve the safety of hoisting and towing.


TypeRated load
(KN)
Wire steel diameter
(mm)
ABCD
125-ZHC550*7Q

1225


28-30



550


790


590
125-ZHC550*7QS
1525
125-ZHC600*7Q

1225


28-30



600


860


640
125-ZHC600*7QS
1560
140-ZHC550*7Q

1372


28-30



550


810


590
140-ZHC550*7QS
1563
100-ZHC550*7Q

980


26-28



550


700


590
100-ZHC550*7QS
1448
