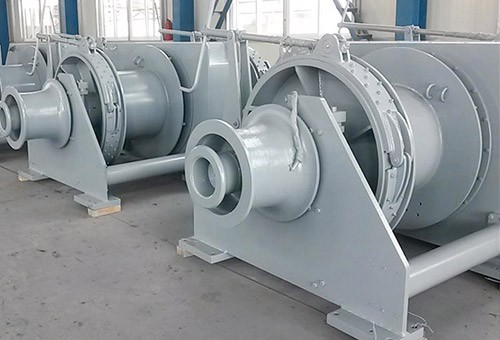

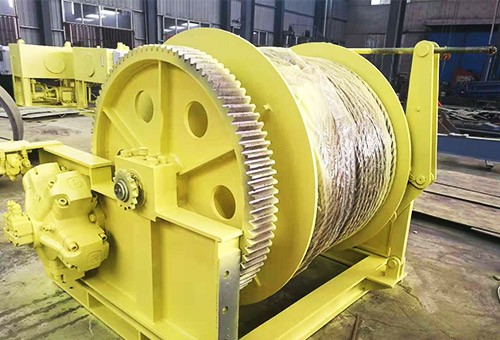

Hydraulic Anchor Winch

Tires are ground-rolled, circular elastic rubber articles that are assembled on a variety of vehicles or machinery. Usually mounted on a metal rim, it can support the body, cushion external impact, achieve contact with the road surface and ...

Detailed Intruduction
  • Hydraulic Anchor Winch


  • Compact structure, beautiful appearance Almost no noise, comfortable operation The size volume is very small,compact structure,save space. Low dead weight,easy to transport. Low energy consumption,save capital cost. Smooth operation,can adjust the speed according to your using. It can be linked with ship’s hydraulic system.



  • Product description

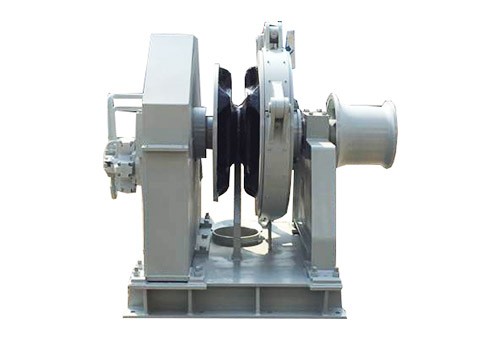

  • The anchoring winch machine is installed on the main deck of the ship's first raft for the anchoring of the ship and for anchoring the tether. The windlass can be divided into single side and double side according to the roll distribution. The anchoring machine is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), and the hydraulic winder has a hydraulic pumping station. The hydraulic anchoring machine is also called electro-hydraulic anchoring machine. It drives the oil pump with electric motor. It drives the gear with high-pressure oil to drive the gear. The structure is compact and the volume is small.

  • ModelChain diameter(mm)Working load(KN)Overload pulling force(KN)Holding load(KN)Nominal speed(m/s)Warping load(KN)
    AM2AM3AM2AM3AM2AM3
    NYM-17.517.51314.619.521.9801150.158
    NYM-191915.317.22325.8951350.1510
    NYM-202017.92026.9301101570.1510
    NYM-222220.62330.934.51261800.1515
    NYM-242424.527.436.841.11492140.1520
    NYM-262628.732.143.148.21752500.1520
    NYM-282833.337.25055.82022890.1520
    NYM-303038.342.857.564.22313300.1530
    NYM-323243.548.665.372.92613740.1530
    NYM-343449.154.973.782.42944210.1530
    NYM-363655.161.682.792.43294700.1530
    NYM-383861.468.992.1103.43655220.1540
    NYM-404068761021144025760.1540
    NYM-42427583.8112.5125.74426320.1550
    NYM-444482.392123.51384836910.1550
    NYM-464689.9100.5134.9150.85267530.1550
    NYM-484897.9109.4146.9164.15708160.1550
    NYM-5050106.3118.8159.5178.26178820.1550
